Pharmaceutical Machines

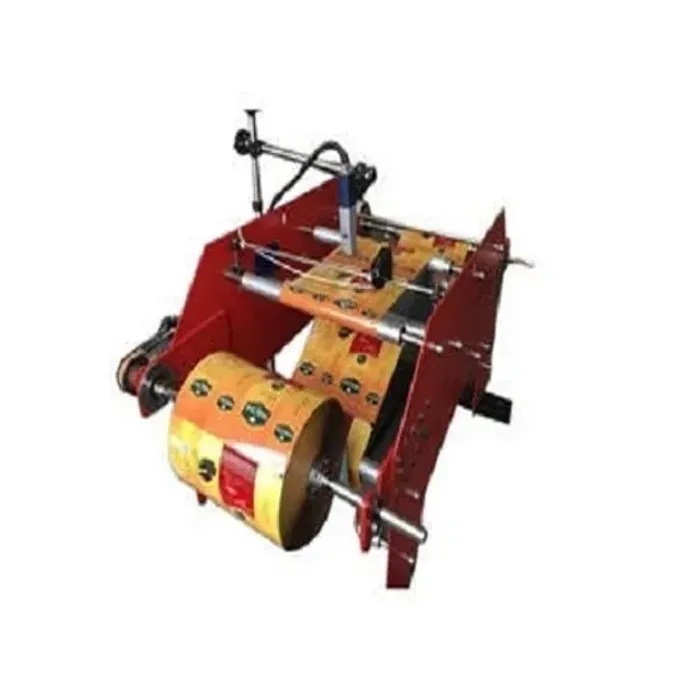

Winder Rewinder Machine for Inkjet Printer
Winder/rewinder (doctor machine) for roll-to-roll batch printing using inkjet or contact coding systems. Used for printing Mfg. date, Exp. date, batch no., serial no. on laminates.
Key Features
- Cantilever design for easy reel loading/unloading
- Movable unwind stage for edge guiding (hydraulic web aligner)
- Mechanical brake (1.5 / 2.5 kg)
- Optional magnetic powder brake with tension controller
- Provision for inkjet printer integration
- Hot air ink drying provision
Applications
Batch Printing Packaging Film & Foil Label & Laminate Processing Industrial Coding
Specifications
- Web Width: 500 mm
- Production Capacity: 100 MPM
- Machine Speed: 100 mpm
- Material Type: Laminates
- Structure Material: Mild Steel
- Automation Grade: Semi-Automatic
- Power Source: Electric, 220 V, 50 Hz
- Brand: SHRI RAM PACKAGING
- Availability: In Stock
Frequently Asked Questions
What is a winder rewinder machine used for?
It is used for roll-to-roll rewinding and on-line batch printing using inkjet or contact coding systems.
What materials can be processed?
It is suitable for laminates, films, foils, and other roll materials used in packaging.
What printing applications does it support?
It supports printing of Mfg. date, Exp. date, batch no., and serial no. with inkjet printers.
What is the web width and speed?
Web width is 500 mm and machine speed is up to 100 mpm.
